U-Shaped Anchor Bolt (U-Bolt)
Material | Diameter | ID (pipe size) | |
---|---|---|---|
inch | mm | inch | |
Low Carbon Steel (Gr 4.6 & Gr 4.8) |
¼"-2½" | M6-M64 | ½"-120" |
Medium Carbon Steel (54SC) |
¼"-2½" | M6-M64 | ½"-120" |
High Tensile (Grade 8.8) | ¼"-2½" | M6-M64 | ½"-120" |
SUS304 | ¼"-2½" | M6-M64 | ½"-120" |
SUS316 | ¼"-2½" | M6-M64 | ½"-120" |
Y-Bar/Deformed Bar | ½"-1½" | Y12-Y40 | ½"-120" |
*Note: We are able to supply this in different measurements upon request

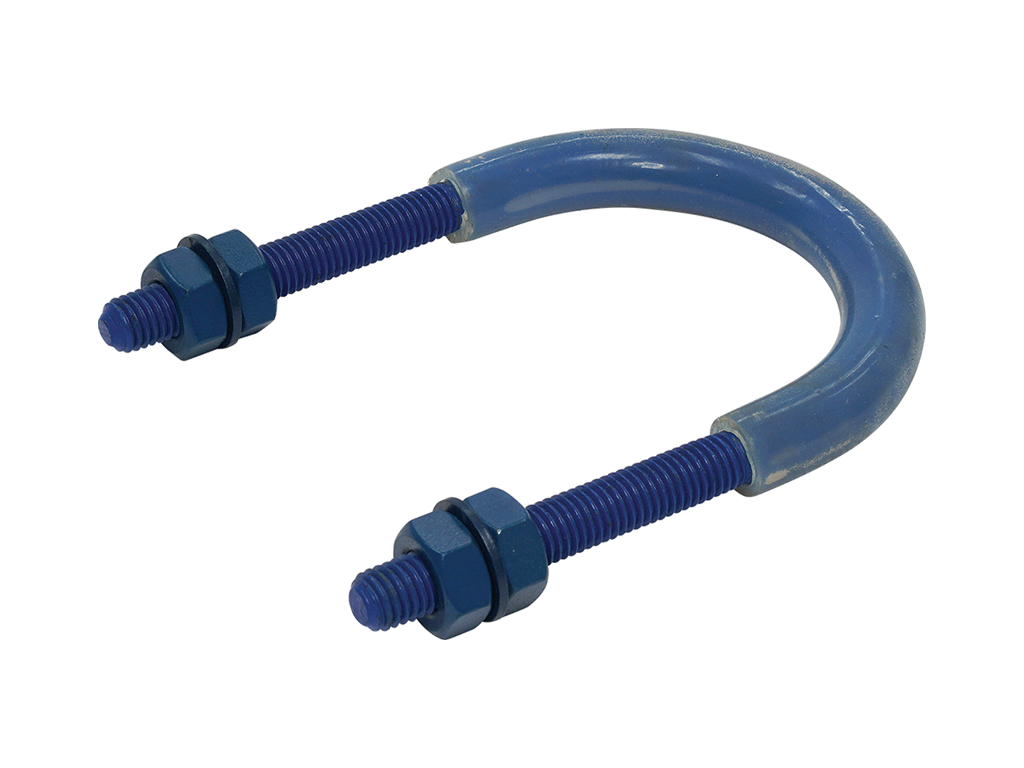

D-Neoprene Insulated U-Bolt
with PTFE Lining

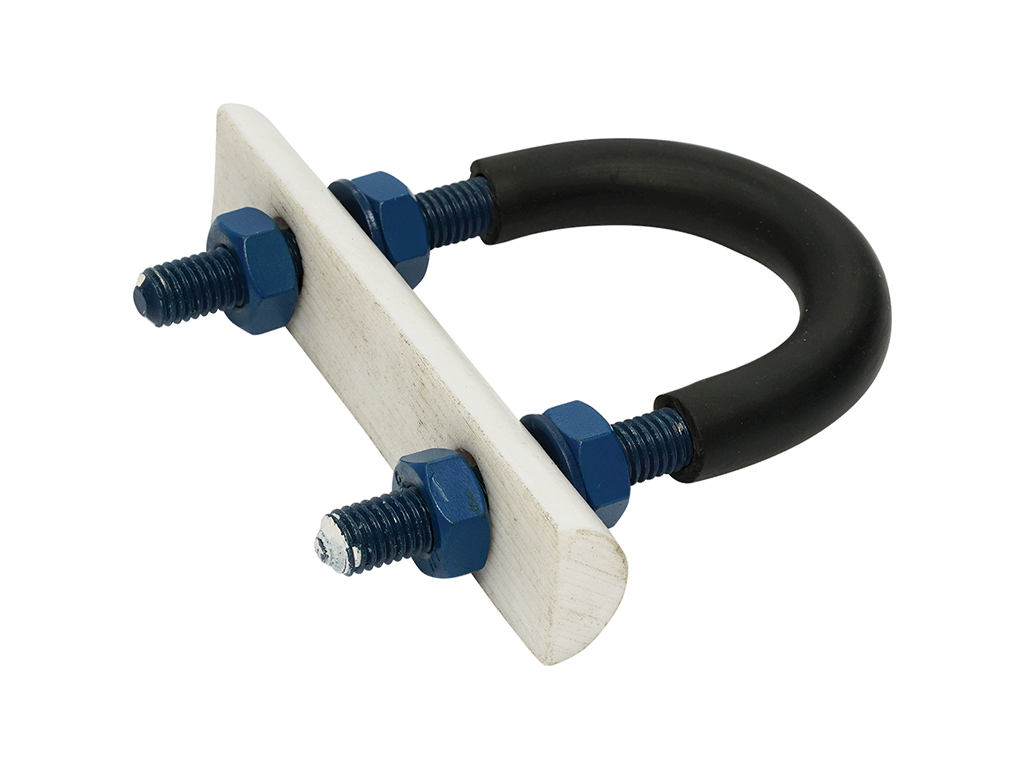

Neoprene Insulated U-Bolt with PTFE Half Round Configuration Pad

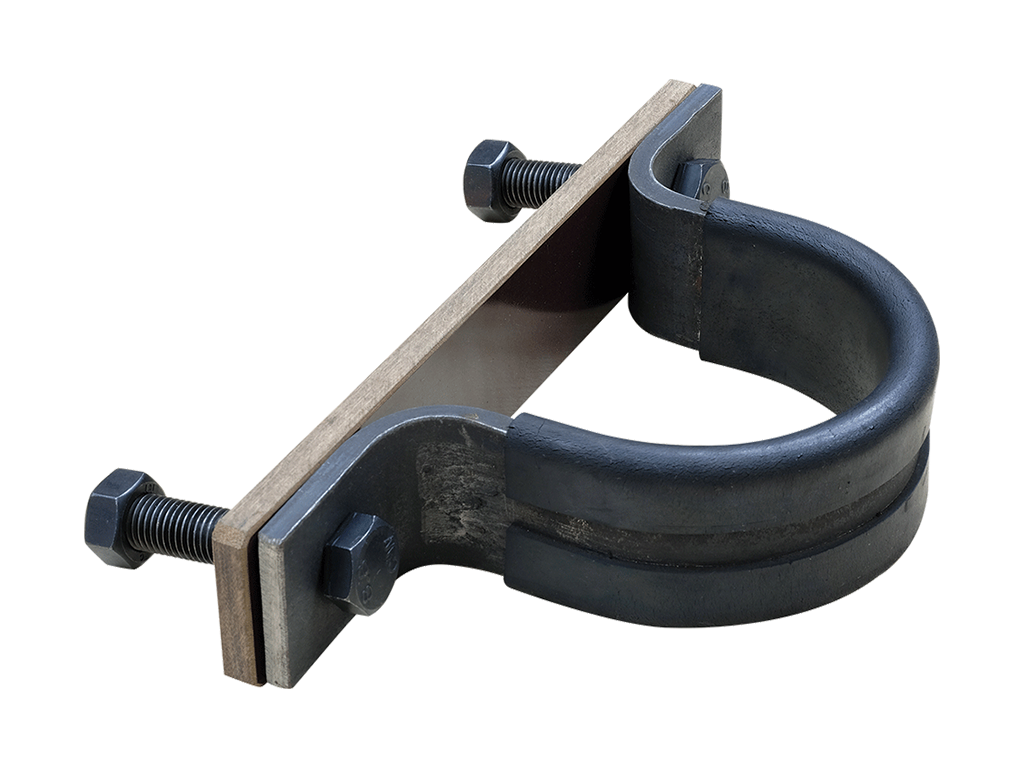

Pipe Clamp with
Neoprene Insulation

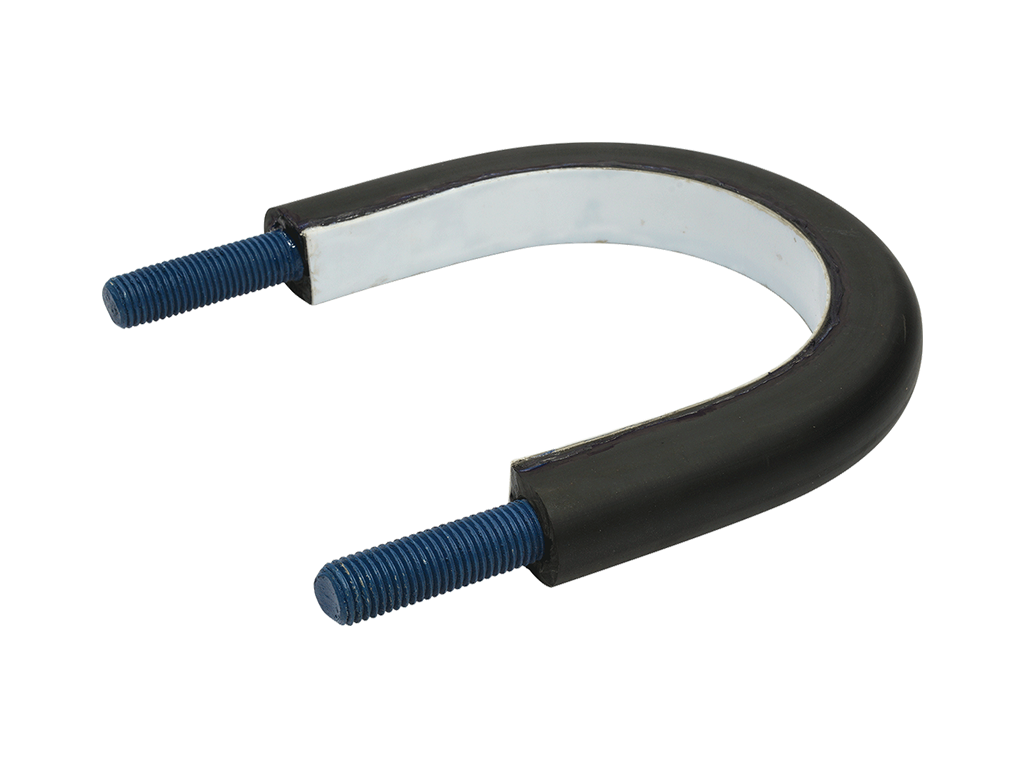

Silicone Insulated U-Bolt
(Withstand more than 200°C)
